VINYL SHEET PILE PROFILE
Vinyl Sheet Piling or PVC Sheet Piles are an effective alternative to steel sheet piling for bulkheads, seawalls and cutoff walls. They are also superior to alternative materials like concrete and wood.
The main advantage of vinyl sheet piles is the superior corrosion resistance when exposed to seawater, where no oxidation occurs. Vinyl sheet piles are also highly resistant to marine borers which make it superior to wooden solutions.
Browse through ESC’s new range of sheet piles, manufactured in facilities in Europe.
Vinyl Sheet Piling also known as Synthetic Sheet Piling, Plastic Sheet Piles, PVC Sheet Piles are becoming increasingly popular for the construction of bulkheads, seawalls, cut-off and containment barriers due to their many advantage.
- Grey (Standard)
- Olive Green or Brown
- Any color (subject to minimum order quantity)
SPECIFICATIONS
| Section | Width | Height | Thickness | Cross Section Area | Section Modulus | Moment of Inertia | Allowable Moment | Ultimate Moment | Ultimate Stiffness | Impact Strength Charpy Test | Weight | Profile | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (W) | (H) | (T) | Per Pile | Per Wall | |||||||||
| in | in | in | in2 | in3/ft | in4/ft | ft-kips/ft | ft-kips/ft | ibf-in2 x106/ft | ft-lbs/ft2 | lb/ft | lb/ft2 | ||
| mm | mm | mm | cm2 | cm3/m | cm4/m | kNm/m | kNm/m | kNm2/m | kJ/m2 | kg/m | kg/m2 | ||
| ESC-GW600-5.5 | 23.9 | 3.5 | 0.22 | 6.4 | 1.6 | 2.8 | 0.43 | 0.86 | 1.1 | ≥ 14.3 | 3.97 | 1.99 | Jagged |
| 608 | 88 | 5.5 | 41.1 | 87 | 385 | 1.9 | 3.8 | 9.9 | ≥ 30 | 5.9 | 9.7 | ||
| ESC-GW300-5.5 | 11.8 | 4.5 | 0.22 | 4.6 | 5.9 | 13.5 | 1.6 | 3.2 | 5.1 | ≥ 14.3 | 2.89 | 2.92 | Double U |
| 300 | 115 | 5.5 | 29.7 | 320 | 1842 | 7 | 14.1 | 47.9 | ≥ 30 | 4.3 | 14.3 | ||
| ESC-GW460-5.5 | 18.1 | 5.1 | 0.22 | 6.6 | 6.7 | 18.5 | 1.8 | 3.6 | 7 | ≥ 14.3 | 4.17 | 2.75 | Box |
| 460 | 130 | 5.5 | 42.9 | 360 | 2,527 | 7.9 | 15.8 | 65.7 | ≥ 30 | 6.2 | 13.4 | ||
| ESC-GW270-5.5 | 10.6 | 6.1 | 0.22 | 3.4 | 6.9 | 23.9 | 1.8 | 3.6 | 9 | ≥ 14.3 | 2.15 | 2.43 | Z |
| 270 | 155.5 | 5.5 | 22.3 | 369 | 3,266 | 8.1 | 16.3 | 84.9 | ≥ 30 | 3.2 | 11.9 | ||
| ESC-GW610-6.4 | 23.9 | 7.1 | 0.25 | 9.7 | 11.4 | 40.4 | 3 | 6.1 | 15.2 | ≥ 14.3 | 6.45 | 3.05 | Box |
| 606 | 180 | 6.4 | 62.6 | 613 | 5,514 | 13.5 | 27 | 143.4 | ≥ 30 | 9.6 | 14.9 | ||
| ESC-GW610-7.2 | 23.9 | 7.9 | 0.28 | 11.3 | 14.4 | 56.7 | 3.8 | 7.7 | 21.4 | ≥ 14.3 | 7.19 | 3.56 | Box |
| 606 | 200 | 7.2 | 73.1 | 774 | 7,743 | 17 | 34.1 | 201.3 | ≥ 30 | 10.7 | 17.4 | ||
| ESC-GW565-9.0 | 22.2 | 9.6 | 0.35 | 11.3 | 19.4 | 93.5 | 5.2 | 10.3 | 35.3 | ≥ 14.3 | 7.06 | 3.8 | Z |
| 565 | 245 | 9 | 72.9 | 1,042 | 12,768 | 22,9 | 45.8 | 332 | ≥ 30 | 10.5 | 18.6 | ||
| ESC-GW610-9.0 | 23.9 | 9.1 | 0.35 | 14.8 | 20.6 | 93.4 | 5.5 | 11 | 35.2 | ≥ 14.3 | 9.14 | 4.64 | Box |
| 606 | 230 | 9 | 95.3 | 1,109 | 12,758 | 24.4 | 48.8 | 331.7 | ≥ 30 | 13.6 | 22.6 | ||
| ESC-GW290-7.0 | 11.4 | 9.4 | 0.28 | 7.3 | 22 | 110.3 | 5,9 | 11.7 | 41.6 | ≥ 14.3 | 4.64 | 4.78 | Z |
| 290 | 240 | 7 | 47.6 | 1,228 | 15,429 | 27 | 54 | 401.2 | ≥ 30 | 6.9 | 23.6 | ||
| ESC-GW290-9.0 | 11.4 | 9.4 | 0.35 | 9.3 | 27.2 | 137.2 | 7.2 | 14.4 | 51.7 | ≥ 14.3 | 5.78 | 6.09 | Z |
| 290 | 240 | 9 | 59.8 | 1,462 | 18,739 | 32.2 | 64.3 | 487.2 | ≥ 30 | 8.6 | 29.7 | ||
| ESC-GW458-10.4 | 18 | 10 | 0.41 | 13.6 | 28.7 | 151.7 | 7.6 | 15.2 | 57.2 | ≥ 14.3 | 8.47 | 5.65 | Z |
| 458 | 254 | 10.4 | 87.7 | 1,542 | 20,718 | 33.9 | 67.8 | 538.7 | ≥ 30 | 12.6 | 27.6 | ESC-GW350-9.0 | 13.8 | 9.8 | 0.35 | 11.1 | 31.8 | 160 | 8.3 | 16.9 | 60.3 | ≥ 14.3 | 6.92 | 7.28 | Z |
| 350 | 250 | 9 | 71.4 | 1,685 | 21,203 | 37.1 | 74.2 | 551.3 | ≥ 30 | 10.3 | 29.4 | ||
| ESC-GW290-11.0 | 11.4 | 9.4 | 0.43 | 11.1 | 31.8 | 160 | 8.3 | 16.9 | 60.3 | ≥ 14.3 | 6.92 | 7.28 | Z |
| 290 | 240 | 11 | 71.6 | 1,711 | 21,851 | 37.6 | 75.3 | 568.1 | ≥ 30 | 10.3 | 35.5 | ||
| ESC-GW458-12.0 | 18 | 10 | 0.47 | 15.2 | 31.9 | 168 | 8.5 | 17 | 63.3 | ≥ 14.3 | 9.48 | 6.3 | Z |
| 458 | 254 | 12 | 97.8 | 1,717 | 22,937 | 37.8 | 75.5 | 596.4 | ≥ 30 | 14.1 | 30.7 | ||
* Kindly click on the section title to download the datasheet.
HYBRID PROFILE
| Section | Width | Height | Thickness | Cross Section Area | Section Modulus | Moment of Inertia | Allowable Moment | Ultimate Moment | Ultimate Stiffness | Impact Strength Charpy Test | Weight | Profile | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (W) | (H) | (T) | Per Pile | Per Wall | |||||||||
| in | in | in | in2 | in3/ft | in4/ft | ft-kip/ft | ft-kip/ft | ibf-in2 x106/ft | ft-lbs/ft2 | lb/ft | lb/ft2 | ||
| mm | mm | mm | cm2 | cm3/m | cm4/m | kNm/m | kNm/m | kNm2/m | kJ/m2 | kg/m | kg/m2 | ||
| ESC-GW300-FR | 11.8 | 4.5 | 0.22 | 4.6 | 5.9 | 13.5 | 1.6 | 3.2 | 6.8 | ≥ 14.3 | 2.96 | 3.04 | Hybrid Double U |
| 300 | 115 | 5.5 | 29.7 | 320 | 1,842 | 7 | 14.1 | 64.5 | ≥ 30 | 4.4 | 14.8 | ||
| ESC-GW350-FR | 13.8 | 9.8 | 0.35 | 11.1 | 31.3 | 155.3 | 8.3 | 16.7 | 96.8 | ≥ 14.3 | 7.19 | 6.26 | Hybrid Z |
| 350 | 250 | 9 | 71.4 | 1,685 | 21,203 | 37.1 | 74.2 | 912 | ≥ 30 | 10.7 | 30.6 | ||
* Kindly click on the section title to download the datasheet.
USEFUL INFORMATION
send an inquiry
For all your inquiries/questions please fill-up the form

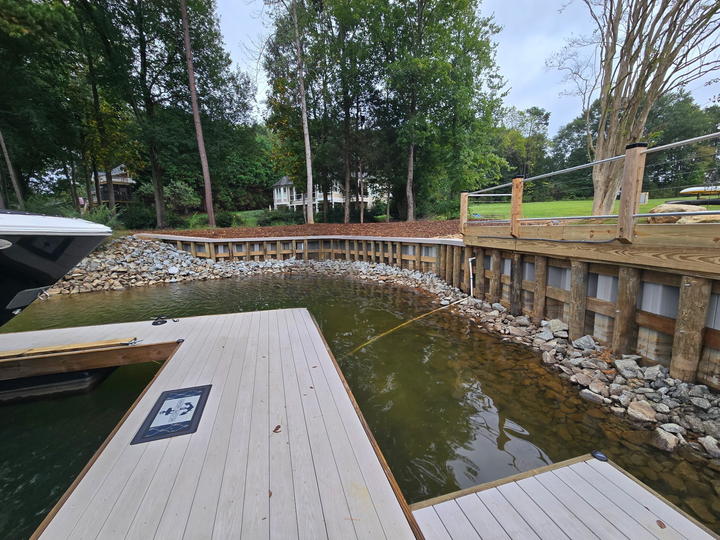

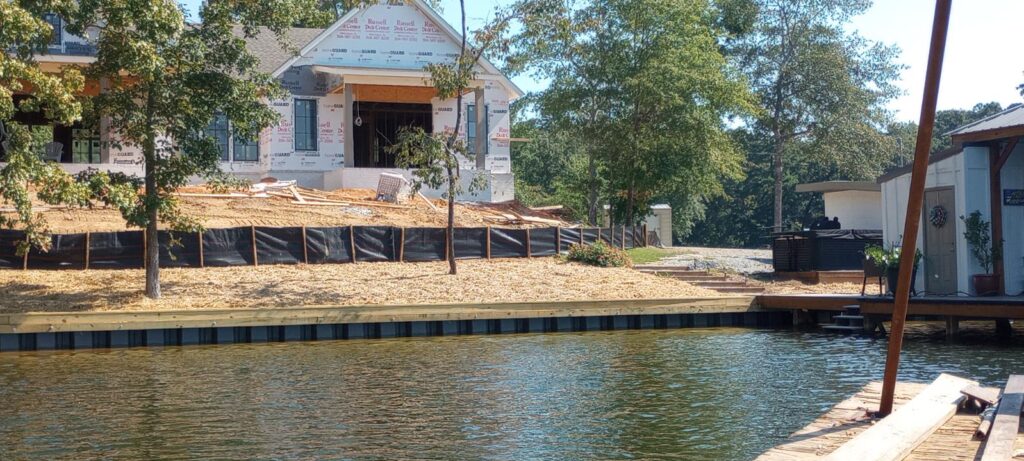

PRODUCT PHOTOS
