Aluminum Sheet Pile
Excepteur sint occaecat cupidatat non proident sunt.
ESC-AL6.2
Aluminum Sheet Pile
Other Alternatives
ESC Aluminum sheet piles are generally used for bulkheads, water control structures, and seawalls. Aluminum sheet piling is an excellent option for projects that require serious protection from corrosive elements. Unlike steel, aluminum won’t corrode due to sand and water. It won’t chip like concrete or wood piles, making them a high-performing, low-maintenance sheet piling material for the marine environment.
Additionally, aluminum sheet piling is one of the most lightweight materials for marine construction needs.
Their interlocking corrugated sheets are ideal for many projects, and at ESC, we have the expertise to get you the best piling product at the best possible price.
Specifications
| Series | Unit Width (W) | Depth (D) | Flance (tf) | Weight | Total Modulus | Moment of Inertia | |
|---|---|---|---|---|---|---|---|
| Section | Wall | ||||||
| in | in | in | lb/ft | lb/ft2 | in3 /ft | in4 /ft | |
| mm | mm | mm | kg/m | kg/m2 | cm3 /m | cm4 /m | |
| ESC-AL6.2 | 12.0 | 6.0 | 0.2 | 7.0 | 7.0 | 11.0 | 33.0 |
| 305 | 152 | 6.2 | 10.42 | 34.20 | 592 | 4,516 | |
Aluminum Sheet Pile
Aluminum Sheet Pile Caps
| Series | Unit Width (W) | Depth (D) | Thickness (T) | Weight |
|---|---|---|---|---|
| in | in | in | lb/ft | |
| mm | mm | mm | kg/m | |
| ESC-AL290 | 11.4 | 3.5 | 0.2 | 4.784 |
| 290 | 90 | 6.0 | 7.12 |
Aluminum Sheet Pile

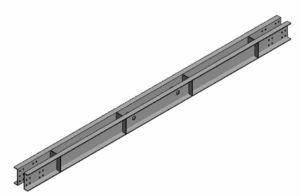

Aluminum Walers
ESC Aluminum Walers are generally used in combination with tie backs and anchor systems which adds support dispersed along the entire length of the structure.
| Series | Channel Width (w) | Channel Depth (D) | Unit Weight | Thickness |
|---|---|---|---|---|
| in | in | lb/ft | in | |
| mm | mm | kg/m | mm | |
| ESC-WALER | 6.0 | 2.035 | 3.696 | 0.314 |
| 152.4 | 51.689 | 5.50 | 7.975 |
