VINYL SHEET PILE SUPPLIER

ESC Steel LLC is a vinyl sheet pile provider supplying to North America and Canada projects.

ESC’s innovative range of Vinyl Sheet Piling is an eco-friendly, highly corrosion-resistant material that can be an effective alternative to traditional steel sheet piles, concrete, and wood materials.

ESC offers the best value for vinyl sheet piles compared to other manufacturers. ESC uses high-grade materials to ensure quality and performance with its sheet pile profiles.

Other sheet pile suppliers manufacturing process utilizes lower quality materials to promote lower costs. ESC offers affordable rates without sacrificing performance. Please contact info@escvinylpile.com to request a quote or browse our website to Learn More!

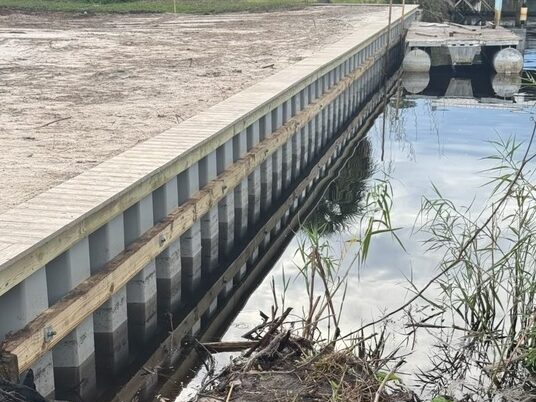

Vinyl Sheet Piling, also known as Synthetic Sheet Piling, Plastic Sheet Piles, PVC Sheet Piles are becoming increasingly popular for the construction of bulkheads, seawalls, cut-off, and containment barriers due to their:

ADVANTAGES

50+ YEAR DESIGN LIFE

Due to its superior corrosion resistance, ESC Vinyl Sheet Piles can be installed with the confidence of structural integrity and appearance even after 50 years.

CONSISTENT APPEARANCE

Vinyl sheet piles are virtually eliminated so a lasting, aesthetic finish of vinyl sheet piles can be expected.

UV RESISTANCE

The PVC material is engineered with special compounds for resistance to the harmful ultraviolet rays.

NO TOXIC COATINGS

No coatings are required, which may be detrimental to the environment.

EASY INSTALLATION

Compared to steel sheet piles, vinyl sheet piles can be up to 40 times lighter per square meter making it much easier to handle. Driving can also be completed under certain conditions by pressing down with an excavator or a compact vibrohammer.

COST EFFICIENCY

Both from installation and long-term cost savings due to superior corrosion resistance and lower price per unit meter material.

NOT AFFECTED BY MARINE BORERS

Small mollusks or crustaceans in the ocean can cause devastating effects over a period of time to traditional timber piling. Vinyl Sheet Piling offers an attractive alternative that is unaffected by these organisms.

how to install vinyl sheet piling

ESC PVC SHEET PILES

Since its introduction in the early 1980’s, Vinyl Sheet Piles have gained recognition and approval from both the Engineering and Construction community for  alternatives to traditional materials.

A modified PVC (polyvinyl chloride) film is typically produced by general extrusion, which involves melting the material and pushing it through a die. Due to the material makeup of vinyl sheet piling, it is relatively inexpensive compared to its equivalents.

As with steel and metal piling, vinyl sheet piling can be manufactured in various configurations. Vinyl sheet pile is most commonly in the form of Z-sheets, which have interlocking male and female strips as in other materials.

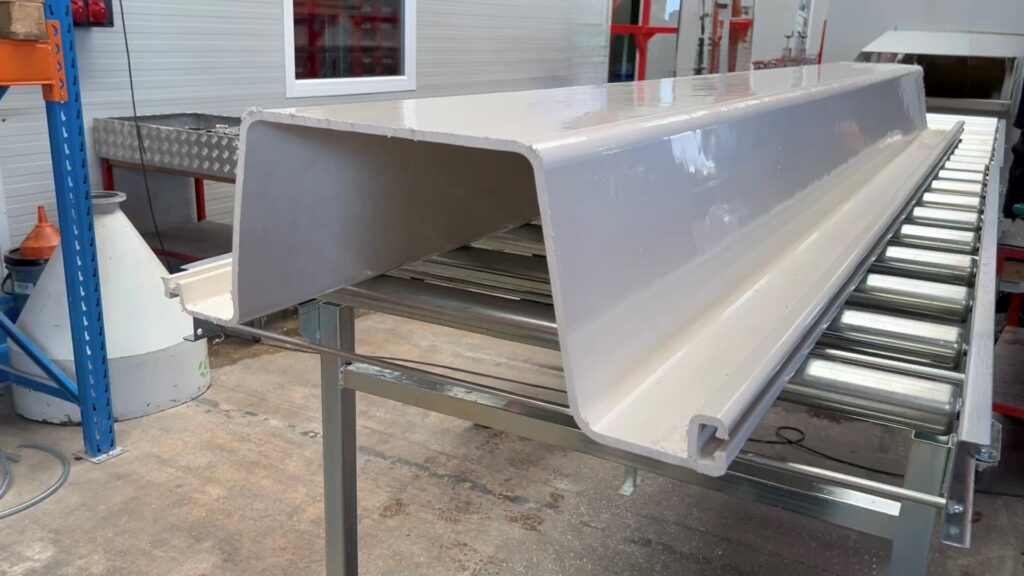

PESC Vinyl Sheet Pile

PESC-24 vinyl sheet pile, is a box profile that offers unmatched versatility and innovative characteristics that promote durability and excellent resistance to corrosion, impact, and ultraviolet rays. This product is designed to provide superior performance in a wide range of soil and environmental conditions, making it ideal for permanent applications. Additionally, its lightweight nature allows for easy handling and installation, reducing overall project time and labor costs. Vinyl sheet piles manufactured by Pietrucha ESC Inc. meet the following industry standards:

ASTM D8427-21: Standard Specification for Rigid Poly Vinyl Chloride (PVC) Exterior Profiles Used for Sheet Piling;  USACE EM 1110-2-2502: US Army Corps of Engineers Specification for Flood Walls  and other Hydraulic Retaining Walls; Other Local and National Specifications

Vinyl Sheet Piles have been successfully utilized for over 20 years. ESC’s 3rd generation of vinyl sheet piles incorporates design improvements that improve driveability, increase leakage, and reduce the overall construction cost of your project.

ecoseal water-tight innovation

If project requirements demand, the product can be manufactured with an integrated gasket. It is also especially engineered to address the increasing demands of clients for a high degree of water-tightness by employing a specialized tightening solution based on the use of gaskets. The profile is equipped with soft PVC gaskets which are co-extruded into the interlocks during the manufacturing process. The shape and size of PVC gaskets depend on the type of vinyl sheet piles. Ecoseal PESC-24 is an excellent product for environmental protection, sealing contaminated areas, combating seepage and piping, and flood control infrastructure.

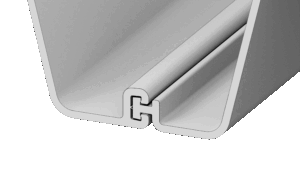

Extruded Gasket

Some manufacturers manually apply a gasket or recommend the application of a hydrophilic sealant prior to installation.  ESC has incorporated a soft PVC Gasket that is extruded into the female lock of the sheet pile.

vinyl sheet pile connector

OPTIMIZED CONNECTOR

ESC’s connectors feature a hybrid of Larssen Interlocks of Steel Sheet Piles and traditional ball and socket connectors in 1st and 2nd generation vinyl sheet pile designs.  This results in an extremely durable connector system which provides a  superior resistance to declutching to other piles in the industry.

WEB STIFFENERS FOR CERTAIN Z PROFILES

Multiple web stiffeners are engineered to provide maximum shear resistance while minimizing the profile weight.

pvc sheet piles
vinyl sheet pile specifications
